Q4P01-12PS 4-input 4-output gas-electric integrated slip ring connector, universal 4-channel slip ring, G1/8" interface, CE and ROHS certified, the default wire length is 250mm and can be adjusted, the signal transmission is stable, and it is suitable for ordinary rotating platforms.
Q4P01-12PS 4-input 4-output gas-electric integrated slip ring connector Features
1. Environmentally friendly compatibility: RoHS2.0/REACH compliant materials, no PFAS substances.
2. Corrosion-resistant treatment: anodized surface, resistant to acid and alkali environments.
3. Leak-proof design: G1/8" threaded interface design reduces leakage risk.
4. Wide voltage support: 0-440V AC and DC universal, adaptable to diversified control systems.
5. Excellent dynamic performance: rotation torque <0.3N·m, 250rpm speed ensures smooth movement.
Q4P01-12PS 4-input 4-output gas-electric integrated slip ring connector parameters
| Electrical parameters | Parameter Value | Gas parameters | Parameter Value |
| Dielectric strength | 500VCA@50Hz,60s | Number of trachea | 4 in 4 out |
| Insulation resistance | ≥500MΩ/300VDC | Pressure | -80KPa-0.8MPaor vacuum |
| Dynamic resistance change value | ＜10mΩ | Rotational torque | <0.3N.m |
| Rated voltage | 0～440VDC/VAC | Rotation speed | 250rpm |
| Wire Specifications | AWG28 Teflon wire (depending on the specific current) | Shell material | Aluminum Alloy |
| Wire length | Default 250mm(Customizable) | Temperature | -30℃～+80℃ |
| Contact material | Precious metal contacts | Operating humidity | 0～85%RH |
| Protection level | IP51 | |
|
Q4P01-12PS 4-input 4-output gas-electric integrated slip ring connector drawings

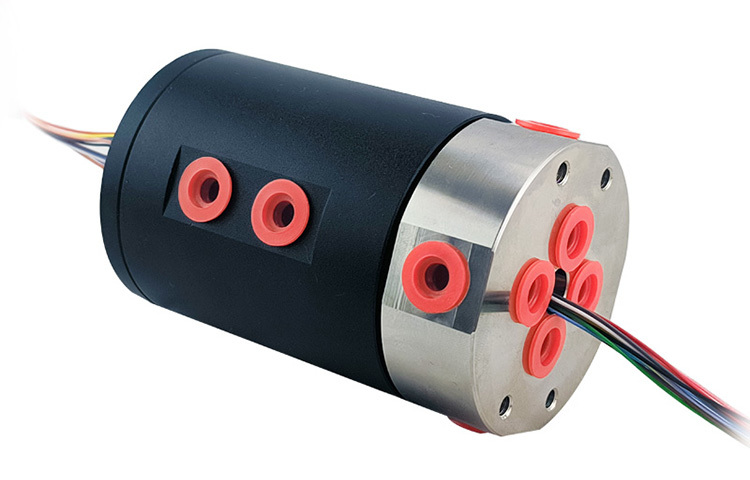

Q4P01-12PS 4-input 4-output gas-electric integrated slip ring connector pictures
Q4P01-12PS 4-input 4-output gas-electric integrated slip ring connector Application scenarios
Suitable for high-precision fields such as industrial automation, medical equipment, and new energy equipment, it solves the key bottleneck of the collaborative work of pneumatic/hydraulic actuators and electrical control systems on the rotating platform, and realizes the smooth execution of complex movements and the entanglement-free transmission of high-density information (fluid + electricity + signal).
